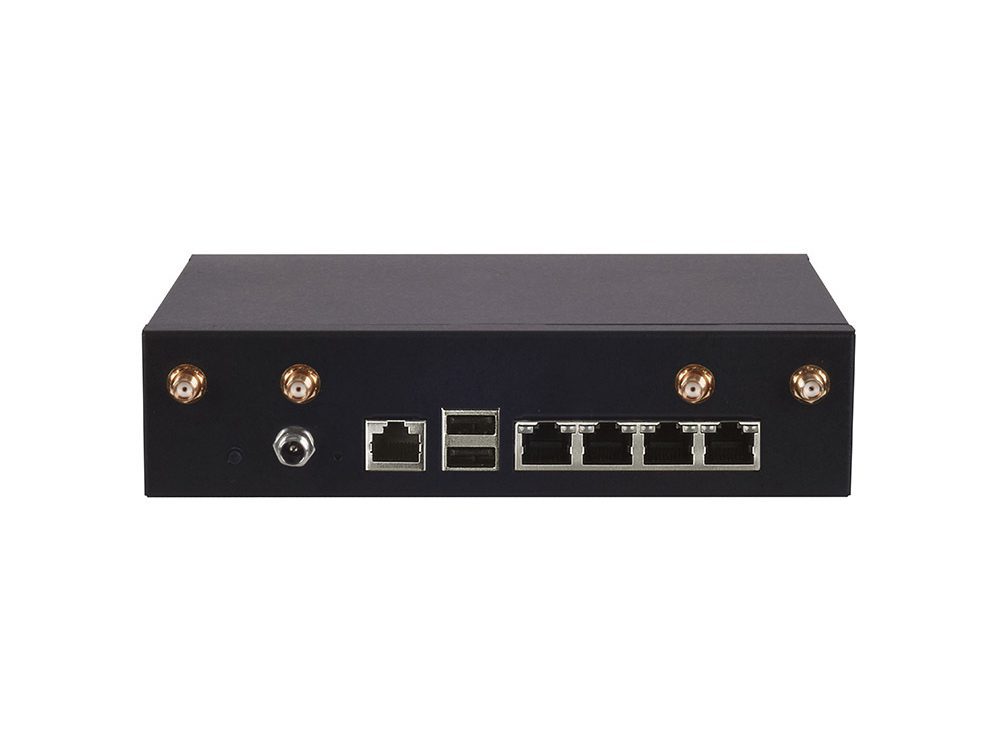

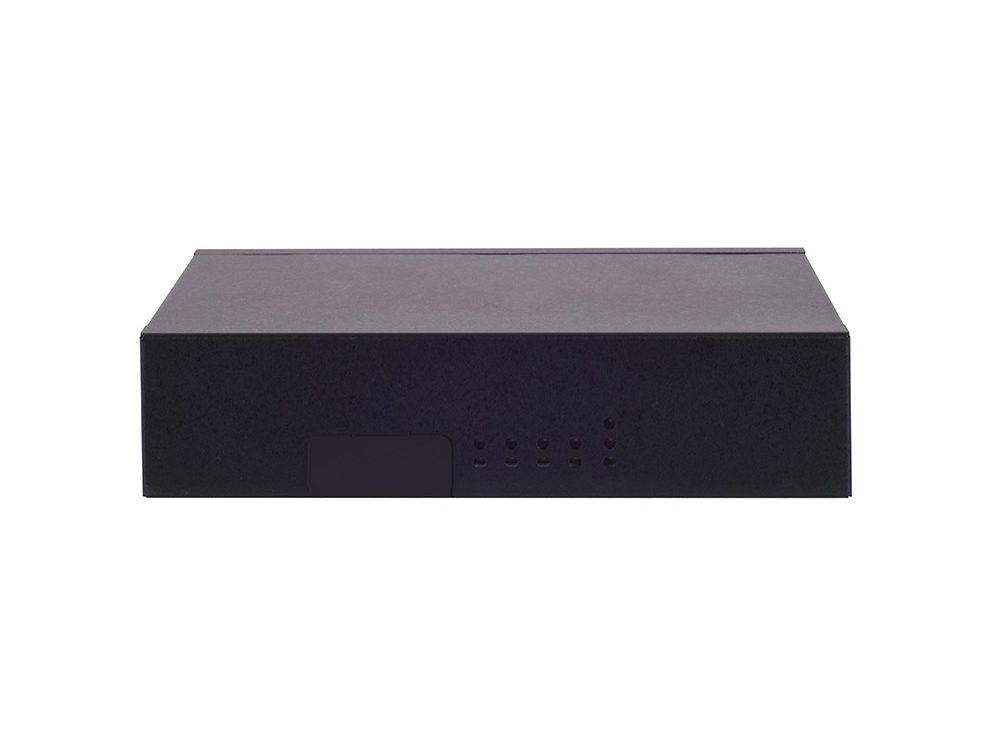

L-D125A
Whitebox Solutions™ for small foot-print uCPE, SD-WAN and edge applications
- Intel® Atom® Rangeley
- 4x GbE RJ45, 2x USB2.0, 1x RJ45 Console
- 1 x 204pin DDR3L 1333 Non-ECC Memory
- 1 x Mini-PCIe (PCIe) 1 x M.2 3042 (PCIe/USB 2.0), 1x Nano Sim Slot
- 8G Onboard, 1 x M.2 2242
- Intel® QuickAssist Technology
- Fanless
Disclaimer
The price shown is in USD, limited to North America. For all other regions, please contact your sales representative.
Want more configurations options?
Call for assistance 855-852-6637 (Toll Free)
Whitebox Solutions™ for small foot-print uCPE, SD-WAN and edge applications
Specifications
| Platform | |
| CPU | Intel® Atom® C2316 (Rangeley) |
| Chipset | SoC |
| BIOS | AMI SPI Flash BIOS |
| Memory Technology | DDR3L 1333 MHz Non-ECC |
| Memory Capacity | 2GB |
| Memory Socket | 1 x 204-pin SODIMM |
| Storage | |
| SATA storage | 8G Onboard, 1 x M.2 2242 (SATAIII) *Actual storage capacity may differ from stated amount. |
| I/O | |
| Default LAN | 4 x GbE RJ45 |
| Console | 1 x RJ45 |
| USB 2.0 | 2 x Type A |
| TPM | Infieon SLB9665 |
| Power and Mechanical | |
| Power input | 1 x DC Jack |
| Type/Watt | 12V 3A 36W Power Adapter |
| Expansion | 1 x Mini-PCIe (PCIe), 1 x M.2 3042 (PCIe/ USB 2.0), 1 x Nano SIM Slot |
| Reset | 1* Reset Button |
| Processor cooling | Passive CPU Heatsink |
| System cooling | Fanless (1 x Cooling Fan By Project) |
| OS and Certifications | |
| Certifications | RoHS, CE, FCC Class A |
| Physical and Environmental | |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 185 mm x 44 mm x 137 mm (7.28″ x 1.73″ x 5.39″) |
| Weight | 1 kg (2.2 lbs) |
| Watchdog | Yes |
| Internal RTC | Yes |
Order Information
| Model | |
| L-D125A | Intel® Atom® C2316, 4x GbE, Intel® QuickAssist Technology |
| Model Number Key | ||||||
| L-D125A-2C | -mm | -ss | -cc | -ww | -x | -pc |
| Parts | ||
| Type | Designator | Available Capacity or Options |
| Memory (GB) | mm | 2/4/8 |
| SSD | ss | 64/128/256/512GB and 1TB (add “M” for M.2) |
| Cellular* | cc | C1/C2/C3/C4 |
| WiFi** | ww | W1/W2/W3/W4/W5 |
| Accessories | x | T1 (TPM1.2), “blank” (TPM2.0) |
| Power Cord | pc | EU (Europe), US (USA), UK (United Kingdom) |
| Celluar Module | |
| Cell Module | Designator |
| LTE M.2 NA/EU CAT6 | C1 |
| LTE M.2 APAC CAT6 | C2 |
| LTE mPCIe NA/EU CAT6 | C3 |
| LTE mPCIe APAC CAT6 | C4 |
| LTE M.2 Global Cat6 | C5 |
| LTE M.2 China Cat6 | C6 |
| WiFi Module | |
| WiFi Module | Designator |
| 2×2 Dual Band + BT | W1 |
| 2×2 Dual Band | W2 |
| 4×4 Dual Band Select | W3 |
| 4×4 2.4G | W4 |
| 4×4 5G | W5 |
